Toilet rough-in dimensions1 are essential for choosing the right toilet. Getting them wrong can cause installation issues.
Toilet rough-in dimensions determine if a toilet fits properly. Standard sizes are 10, 12, and 14 inches, affecting installation and replacement choices.
Knowing how to measure and select the right rough-in size ensures a perfect fit and prevents costly mistakes.
What Is a Toilet Rough-In, and Why Does It Matter?
The rough-in size is the distance between the toilet’s drainpipe and the wall. Choosing the wrong size can lead to improper installation.
A toilet rough-in is the distance from the wall to the drainpipe center. It ensures the toilet fits and functions correctly.
Rough-in sizes vary, with the most common being 12 inches. Some older homes use 10-inch or 14-inch rough-ins. Measuring correctly is crucial for replacements.
Standard Toilet Rough-In Sizes
| Rough-In Size | Common Usage | Availability |
|---|---|---|
| 10 inches | Older homes | Limited options |
| 12 inches | Standard size | Widely available |
| 14 inches | Larger bathrooms | Fewer choices |
Why Does the Rough-In Size Matter?
Rough-in size affects plumbing alignment2, installation feasibility, and toilet options. Selecting the correct size ensures the toilet fits perfectly without expensive modifications.
How Do I Accurately Measure My Toilet Rough-In Size?
Measuring the rough-in is straightforward but must be done correctly. Mistakes can result in buying the wrong toilet.
To measure, find the center of the drainpipe and measure straight to the wall. Avoid baseboards when measuring.
Use a tape measure3 from the bolt caps of the existing toilet to the wall. If remodeling, measure from the exposed flange.
Tools Needed for Measuring
- Tape measure
- Pencil for marking
- Level (optional for accuracy)
Common Measurement Mistakes
- Measuring from baseboards instead of the finished wall
- Not accounting for tile thickness in remodels
- Ignoring clearance for plumbing adjustments

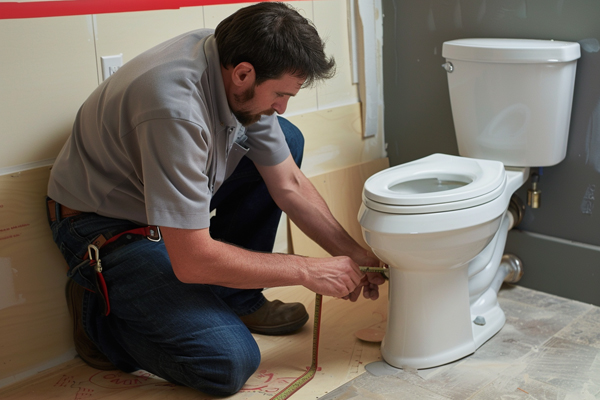

How Do I Measure My Toilet for a Proper Replacement?
Replacing a toilet requires knowing its rough-in size to ensure a proper fit.
Measure the existing toilet's rough-in before purchasing a replacement. The wrong size may not align with plumbing.
Some toilets may allow for adjustments, but getting the correct measurement prevents unnecessary modifications.
Can You Adjust a Rough-In Size?
In some cases, a plumber can relocate the drainpipe4, but this is costly. Using offset flanges can help, but they are not always ideal.
How Can I Tell If My Toilet Has a 10-Inch, 12-Inch, or 14-Inch Rough-In?
Understanding rough-in sizes helps when selecting a replacement toilet.
Measure from the wall to the toilet bolts. The measurement should be 10, 12, or 14 inches.
Manufacturers design toilets specifically for these measurements. Using the wrong one can lead to poor fit or plumbing adjustments.

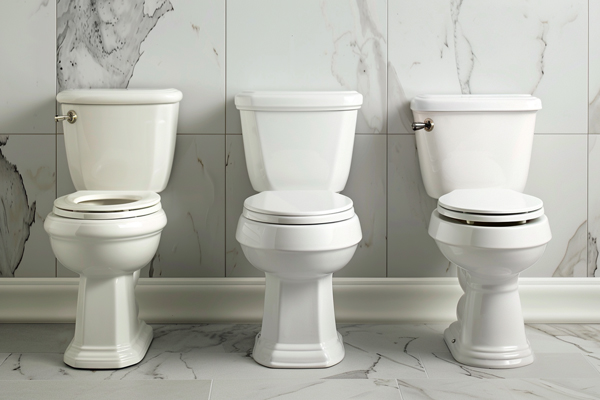

Comparing Rough-In Sizes
| Rough-In Size | Advantages | Disadvantages |
|---|---|---|
| 10 inches | Saves space | Fewer toilet options5 |
| 12 inches | Standard size, widely available | None |
| 14 inches | Allows more space behind toilet | Limited toilet choices |
Is a 12-Inch Rough-In Standard for Most Toilets?
Yes, a 12-inch rough-in6 is the most common size in modern homes.
Most toilets use a 12-inch rough-in. It provides the best balance between space and compatibility.
Why Is 12 Inches the Standard?
Most modern homes are built with a 12-inch rough-in to match readily available toilets. It offers an ideal balance between space efficiency and plumbing compatibility.

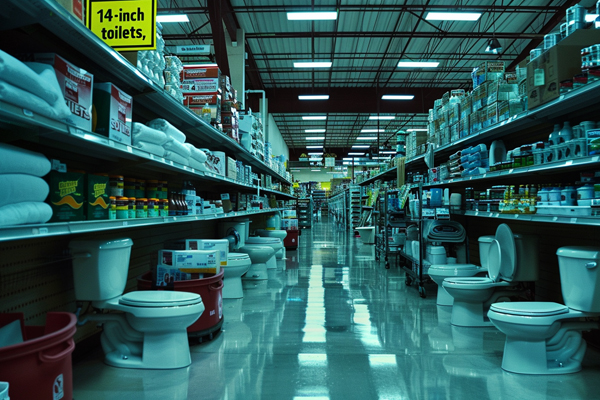

Are 14-Inch Rough-In Toilets Common or Hard to Find?
14-inch rough-in toilet7s are less common than 12-inch models.
Finding a 14-inch rough-in toilet can be challenging. Manufacturers make fewer models in this size.
They are often used in older homes or custom-designed bathrooms.
Should You Convert a 14-Inch Rough-In?
Using an adapter or modifying plumbing might be necessary to use a 12-inch toilet in a 14-inch space.
Can I Replace a 14-Inch Rough-In Toilet with a 12-Inch Model?
Yes, but it requires an adapter or a modified plumbing setup.
Using a 12-inch toilet in a 14-inch rough-in space leaves a 2-inch gap. Adapters help bridge this difference.
Using Offset Flanges for Adaptation
Offset flanges shift the toilet position but might affect drainage efficiency.
What Happens If I Install the Wrong Rough-In Size?
Installing the wrong size can cause alignment and plumbing issues.
An incorrect rough-in may cause leakage, improper flushing, or prevent installation.
Toilets must align properly with the waste pipe to function efficiently.
Potential Installation Problems
- Toilet not sealing properly to the drain
- Gaps between the tank and the wall
- Difficulty securing toilet bolts
How Far Should a Toilet Be From the Wall?
Toilets require specific clearance from the wall for comfort and accessibility.
A standard toilet should be about 12 inches from the finished wall8. This ensures a proper fit.
Always measure from the finished wall, not baseboards.
Why Clearance Matters
Adequate clearance prevents tight spaces that make cleaning and maintenance difficult.
How Much Clearance Space Does a Toilet Need on Each Side?
Building codes specify minimum clearance space for toilets.
A toilet should have at least 15 inches of clearance on each side for comfort and compliance.
Clearance Requirements by Code
| Location | Minimum Clearance |
|---|---|
| Side walls | 15 inches |
| Front clearance | 21 inches |
| ADA-compliant toilets | 48 inches |
What Are the Standard Set-Out Measurements for a Toilet?
Set-out measurements vary based on toilet design.
Set-out distance refers to the rough-in size and wall spacing. Standard sizes are 10, 12, and 14 inches.
Measuring Set-Out for Wall-Hung Toilets
Wall-hung toilets require measuring bracket positions and drainage points.

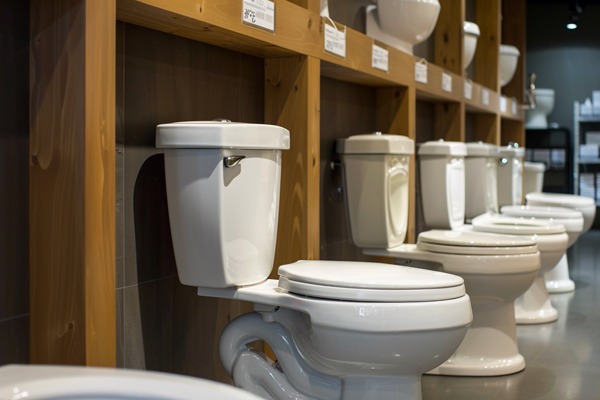

How Do I Know If My Toilet Is a Standard Size?
Most toilets conform to industry standards, but variations exist.
Check the rough-in size and overall dimensions. Standard toilets fit most bathrooms.
Checking Bowl Shape
Toilets come in round and elongated shapes, affecting space usage.
What Should I Consider Before Buying a New Toilet?
Selecting a new toilet involves more than just rough-in size9.
Consider water efficiency, comfort height, bowl shape, and rough-in compatibility.
Key Features to Consider
| Feature | Importance |
|---|---|
| Rough-in size | Must match existing plumbing |
| Water efficiency | Saves on water bills |
| Bowl shape | Comfort and space considerations |
| Height | ADA-compliant models available |
Conclusion
Choosing the right toilet rough-in size ensures proper installation and functionality. A 12-inch rough-in is standard, but 10-inch and 14-inch options exist. Measuring correctly prevents costly mistakes. Always check compatibility before purchasing a new toilet.
-
